Quick Details

  • Condition: New
  • CNC or Not: CNC
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: PHILICAM
  • Model Number: FLD1325-4
  • Voltage: 220v/380v
  • Power(W): 4.5KW
  • Dimension(L*W*H): 3070*1970*1550mm
  • Weight: 1200kg
  • Certification: CE ISO FDA
  • Warranty: 2 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • working area: 1300*2500*200mm
  • spindle: 4.5kw air cooling spindle
  • control system: Weihong NK105 DSP system
  • moter and driver: Leadshine stepper motors and drivers
  • transmission: X Y axis gear transmission,Z axis Taiwan TBI ball screw
  • table: vacuum table
  • guide: Taiwan Hiwin
  • color: optional
  • inverter: Fuling inverter
  • Product name: 3d woodworking cnc router with four spindles

Packaging & Delivery

Packaging Details Strong plywood case woodworking cnc router
Delivery Time Shipped in 15 days after payment

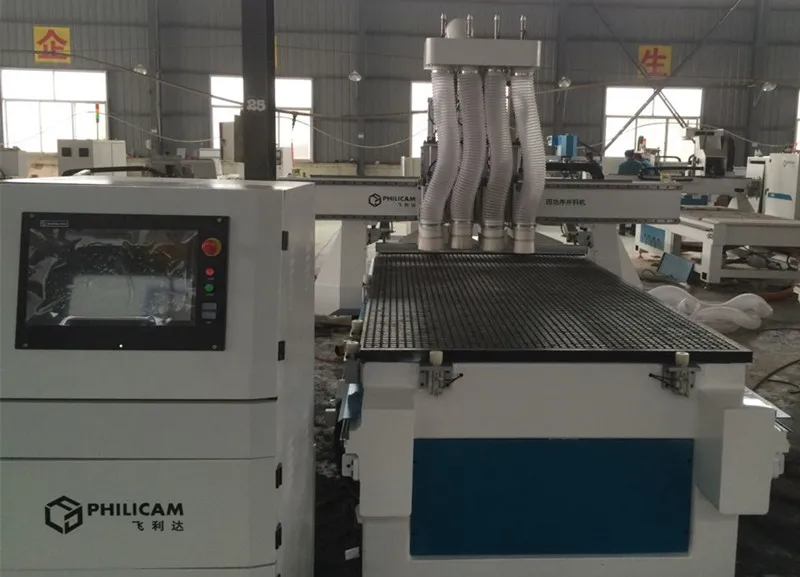

3d woodworking cnc router with four spindles 132

Features:

1. Adopt HIWIN linear square guide rail, high precision with faster speed and low power dissipation



2. Adopt helical rack and pinion transmission, faster and higher accuracy than straight

rack and pinion.



3. In effect it operates like an tool changer machine, but by changing spindles rather than changing

  tools.Adopt 4.5KW air cooled spindle,speed can be 0-24000R/min.better for furniture cutting and engraving





4. Vacuum table can hold materials with vacuum suction



5. DSP offline control system,  which makes end users to be familiar with the operation of the machine quickly.



6. Auto oil lubricating system for periodic maintenance, easy and convenient.



7.With air cylinder postion, could adjust wood position automatically.

8. Welded by seamless square steel tube, very very strong and stable, robust without deformation,

long service lifetime.



9.Its functions is similar with the ATC cnc machine, but its price is much lower than ATC cnc router



Specifications

Description Parameter
X,Y,Z working area1300x2500x200mm
X,Y,Z Traveling positioning accuracy ±0.03/300mm
X,Y,Z Repositioning positioning accuracy±0.03mm
Lathe bed frameSteel square tubes
X,Y StructureRack and pinion,
Taiwan HIWIN guide rails 20mm
Z Structure Ball screw  2510
Taiwan HIWIN guide rails 20mm
Drive motorsStepper system
Table surfacevacuum table
Fixing methodvacuum
Max power comsumption (without spindle)2.0KW
Max rapid travel rate30000mm/min
Max working speed 20000mm/min
Spindleair-cooling
Spindle power 4.5KW
Spindle speed 6000-24000RPM
Working voltageAC220V/50/60Hz(option 380V)
Command languageG Code
Operatiing system NC studio control system
Computer interface USB
Collet ER20(3.175/4/6/8/10/12.7mm)
X,Y Resolution<0.02mm
Software compatilibyType3/Artcam/Artcut/Ucancam/JDpaint etc software
Running environment temperature 0-45 centigrade
Relative humidity 30%-75%
 CE





Application:

1. Suitable for large size single line, bottom milling, 3D relief etc. carving and cutting.

2. Wooden artware industry: processing different kinds of wooden arts and crafts.

3. Door Industry: single line and relief carving and cutting of cabinet door, solid wood door, security door etc.

4. Carpentry decoration Industry.

5. Home Decoration Industry: relief carving and cutting of fresco, screen etc.

6. Furniture Industry: 2D, 3D relief carving and cutting of door, bed, computer desk, chairs etc.

7. Advertising industry: giant acrylic cutting, chest card making, stereo advertising board making etc.





Other machine:



Packaging:

All machine are packed with standard inner plastic wrap and plywood case, inner package would be help to tight all the small parts in the package. And the plywood is firm enough to protect the machine.



Why philicam?

1. Philicam product is widely used in almost all the materials you can think of.

2. Philicam company is specialized in CNC Router and laser machine manufacturing and selling 3. Philicam machine with high precision and excellent reputation is the most reliable product you can choose.

4. Philicam company has all kinds of machines in store, the delivery time is much shorter than other companie

5. Philicam company has international technical service office and provides 24 hours online services and technical supports for customers
