Quick Details

  • Condition: New
  • CNC or Not: CNC
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: PHILICAM
  • Model Number: F3
  • Voltage: 380v
  • Power(W): 9.0KW
  • Dimension(L*W*H): 3100*2100*2250
  • Weight: 2100kg
  • Certification: CE,SIO
  • Warranty: 18 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • wood carving machine: wood carving machine
  • spindle: 9KW air cooling spindle
  • control system: Taiwan Syntec 6MA system
  • motor and driver: DELTA servo motor and driver with reducer
  • Vacuum pump: 5.5kw water vacuum pump
  • table: vacuum /T-slot & vacuum combination table
  • transmission: Taiwan TBI ball screw
  • rail: Taiwan HIWIN square rails
  • parts: with reducer, tool box etc
  • inverter: Fuling 11KW inverter

Packaging & Delivery

Packaging Details Strong plywood case or as your need
wood carving machine
Delivery Time Shipped in 20 days after wood carving machine payment

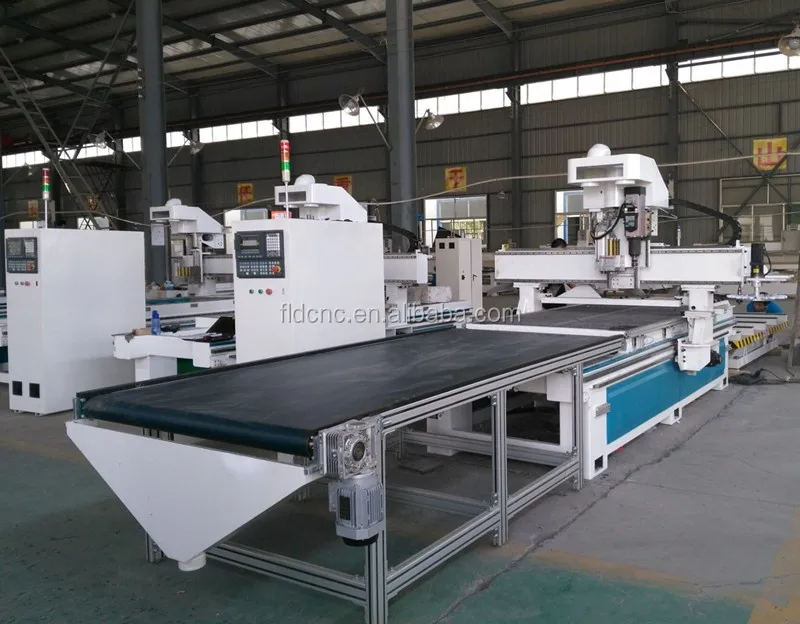

  Philicam auto wood carving machine for furniture





 Features of wood carving machine

 1) Working area: 1300x2500x200mm

 2) Spindle motor : 9KW air cooling ATC spindle

 3) Servo system: Taiwan Delta 750W servo motor and driver, with reducer

 4) Inverter: Fuling 11kw inverter

 5) Operating system: Taiwan Syntec 6MA system

 6) Rail: Taiwan HIWIN square rails

 7) Taiwan TBI ball screw

 8) Vacuum pump: 5.5kw water vacuum pump
 9) Table: Vacuum Table / T-slot table
10) helical rack
11) software : TYPE3/Artcam etc
12) tools box (include router bits,collect, clamp, tool sensor,etc)

13) dual-drum dust collector ,Brush, suction pipe, Vacuuming stents.
14) Change of tools - circular the 10 tools
15) Cable: drag chain specific Cable, anti-jamming, anti-static; with high flexibility, long-term use will not break
16) Overall welding tempered aging treatment, strong and does not distort

17) Beam: steel beam stiffeners
18) Voltage 3PHASE 380V/ 50HZ

19) oil injection system
20) Packing should be international standard plywood case packing
21) Idle running speed: 60m/min, working speed:20m/min







Description

Parameter

X,Y Working Area

1300*2500mm

Z Working Area

300mm

Table Size

1440*3040mm

Resolution

0.01mm

Lathe Structure

Seamless welded steel structure, better than cast iron one

X,Y Structure

Rack and pinion, gear drive,

Taiwan Hiwin H30 square guide rails

Z Structure

Germany-made rolling ball screw,

Taiwan Hiwin H30 square guide rails

Max. Idling Speed

60m/min

Spindle

Italy HSD air-cooling 9.0 KW

Spindle Speed

0-24000r/min, variable speed

Working Voltage

AC380V/50Hz

Motor and driver

YASKAWA

Working Mode

Servo

Command

G code (HPGL,U00,mmg,plt)

Operating System

SYNTEC control system

Diameter of Cutter

φ3.175-φ12.7

Cooling Mode

Air-cooling

Dust-collect Function

Yes

Work Holding

By suction or clamp

Tool Magazine

Linear-style auto-tool changer system with 6 pieces of tools

Net Weight

2100KG









Applications of wood carving machine

 1). Furniture: plate, office furniture, doors, cabinets.

 2). Wood products: speakers, games cabinets, comfurniture center furniture center puter tables, sewing machines, musical instruments.

 3). Board processing: insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.

 4). Decoration: Acrylic, PVC, MDF, plastic and soft metals such as copper and aluminum.






Other products



wood carving machine process

In order to guarantee the high quality of our wood carving machine, we adopt strict management mode.

we control the quality of each product, and put consumers' profit in the first place.





 Exhibition of wood carving machine









Releated Products:

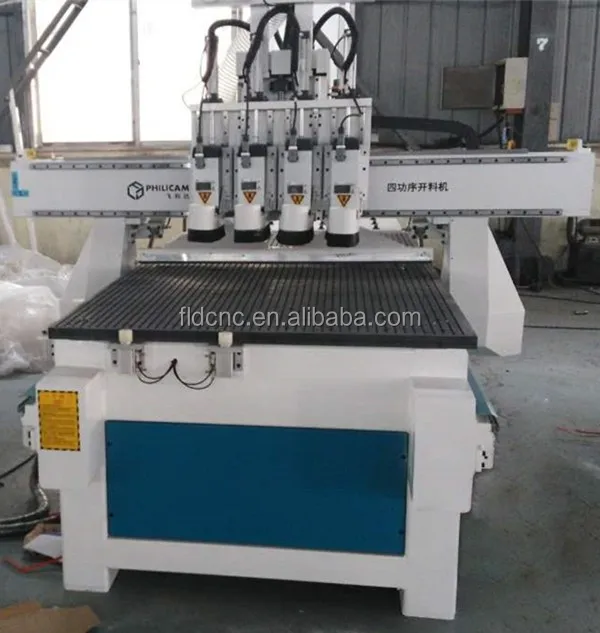

                             4 Head CNC Wood Router                                       F2-9 CNC Wood Router
