Quick Details

  • Condition: New
  • CNC or Not: CNC
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: PHILICAM
  • Model Number: FLDM1325
  • Voltage: 380v
  • Power(W): 9.0KW
  • Dimension(L*W*H): 3100*2100*2250
  • Weight: 1900kg
  • Certification: CE ISO FDA
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • FLDM1325: three head cnc router 1325 with drilling spindle
  • spindle: China 9KW air cooling spindle
  • control system: Taiwan Syntec 6MB system
  • motor and driver: DELTA servo motor and driver with reducer
  • Vacuum pump: 5.5kw water vacuum pump
  • table: vacuum table
  • transmission: Taiwan TBI ball screw
  • rail: Taiwan HIWIN square rails
  • parts: with reducer, tool box etc
  • inverter: Fuling 11KW inverter

Packaging & Delivery

Packaging Details Strong plywood case
Delivery Time Shipped in 20 days after payment

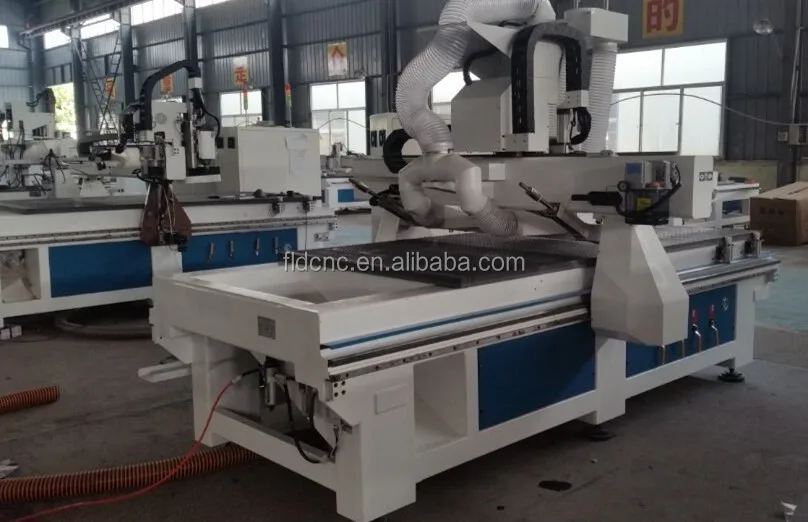

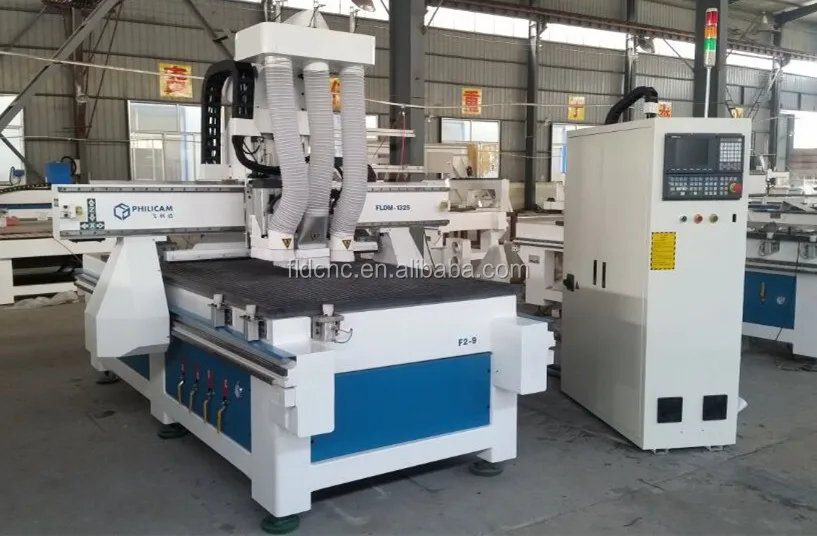

Philicam three head cnc router 1325 with drilling spindle

Features

 1) Working area: 1300x2500x300mm

 2) Spindle motor : double 4.5KW air cooling spindle

 3) Servo system: YASKAWA850W servo motor and driver, Z axis with reducer

 4) Inverter: Taiwan Delta 11kw inverter

 5) Operating system: Taiwan Syntec 6MBsystem

 6) Rail: Taiwan HIWIN square rails

 7) Taiwan TBI ball screw

 8) Vacuum pump: 7.5kw water vacuum pump
 9) Table: Vacuum Table
10) helical rack
11) software TYPE3/Artcam etc
12) tools box (include router bits,collect, clamp, tool sensor,etc)

13) dual-drum dust collector ,Brush, suction pipe, Vacuuming stents.
14) Change of tools - circular the 12tools
15) Cable: drag chain specific Cable, anti-jamming, anti-static; with high flexibility, long-term use will not break
16) Overall welding tempered aging treatment, strong and does not distort

17) Beam: steel beam stiffeners
18) Voltage 3PHASE 380V/ 50HZ

19)Autolubrication system
20)with drilling system


Description

Parameter

X,Y Working Area

1300*2500mm

Z Working Area

300mm

Table Size

1440*3040mm

Resolution

0.01mm

Lathe Structure

Seamless welded steel structure, better than cast iron one

X,Y Structure

Rack and pinion, gear drive,

Taiwan Hiwin H30 square guide rails

Z Structure

Germany-made rolling ball screw,

Taiwan Hiwin H30 square guide rails

Max. Idling Speed

60m/min

Spindle

4.5KW air cooling spindle

Spindle Speed

0-24000r/min, variable speed

Working Voltage

AC380V/50Hz

Motor and driver

YASKAWA

Working Mode

Servo

Command

G code (HPGL,U00,mmg,plt)

Operating System

SYNTEC control system

Diameter of Cutter

φ3.175-φ12.7

Cooling Mode

Air-cooling

Dust-collect Function

Yes

Work Holding

By suction or clamp

Tool Magazine

Linear-style auto-tool changer system with 6 pieces of tools

Net Weight

2100KG









Applications of maching center

 1). Furniture: plate, office furniture, doors, cabinets.

 2). Wood products: speakers, games cabinets, comfurniture center furniture center puter tables, sewing machines, musical instruments.

 3). Board processing: insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.

 4). Decoration: Acrylic, PVC, MDF, plastic and soft metals such as copper and aluminum.




Other products



Machine process

In order to guarantee the high quality of our machines, we adopt strict management mode.

we control the quality of each product, and put consumers' profit in the first place.




Our warranty:

 One year warranty for machine. English technical to door service.

English manual and Video CD for machine using and maintenance.We offer free training in our factory, welcome to visit and learn more about our machines.

 Free accessories: Software, manual, book, cd videos, PCI control

Before sale:

We would always be here to provide any information you need at the first time, and give professional suggestions according to your real needs for free;

During sale:

We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here;

After sale:

We would provide English Version working manual.

If you have any questions during using and maintaining, our engineers who could speak very good english would answer you online or by calls.

Machine warranty is one year. So if your machine has any unintentional damages, we would provide parts for free.

If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.

Could be remote control if needed.



Welcome to join us, We are also looking for the agents!
