Quick Details

  • Condition: New
  • CNC or Not: CNC
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: PHILICAM
  • Model Number: FLDM1325
  • Voltage: 380V
  • Power(W): 4.5KW
  • Dimension(L*W*H): 1300*2500*200mm
  • Weight: 2000kg
  • Certification: CE FDA ISO
  • Warranty: 2 Years
  • After-sales Service Provided: Engineers available to service machinery overseas

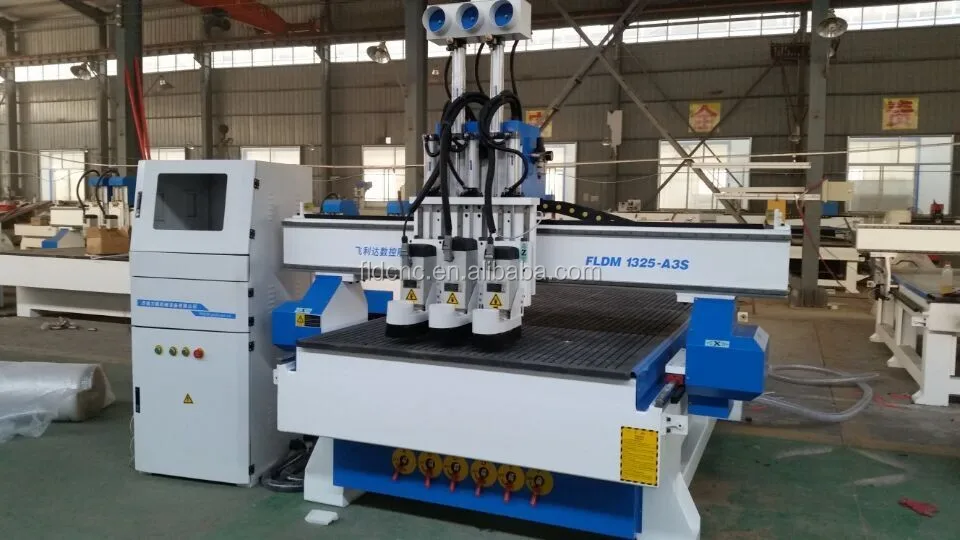

  • Product name: woodworking furniture cnc router
  • In the middle of the spindle: 4.5kw air cooling spindle
  • On both sides of the spindle: 3.5 kw air cooling spindle
  • Transmission in X, Y axis: Pinion Transmission
  • Z axis transmission: Taiwan TBI Ball Screw Transmission
  • Motor and driver: hybrid servo motor and 2206 driver
  • Control system: NC Studio system
  • Inverter: Sunfar Inverter
  • Software: Artcam
  • Color: Blue and white(optional)

Packaging & Delivery

Packaging Details: piywood case
Delivery Detail: 15 working days
Product Description

Product Application

1) Can process a variety of materials by changing the matching carving tools: such as Acrylic, PVC sheet, wooden board, density particle board, metal, stone, bakelite, etc.
2) With a wide sphere of application in varieties of purpose for diffenent industries: making advertising signs such as, processing tri-dimensional surface that plank plate and solid wave plate, fabricating screen and sashed window, engraving and cutting of cabinet gate, wooden and paint-free gate, building model,etc. metal industry, processing furniture Also widely used for making signs, wood pattern, aero wood pattern, propeller, form vehicle mould, forming 3-Dl surface of violin, Erhu and other musical instruments, external cutting and engrave pattern, handwriting or frame on those instruments, etc.


Main Features

1) Adopt DSP processor which control precision is in 1 micron, appliy high-power motor driving technology with high precision. The wide adaptive input voltage (range 160V - 270V) make it a great adaptability for work under adverse environmental condition of power supply.
2) Adopt driver which power is over 200Watt to provide sufficient torque for stepper motor in high-speed engravement (1/64), in order to ensure steady and high-speed performance.
3) Automaticly survey surface origin, and has the ability of memorizing 9 origins at the meantime. It has continuous working function in case of un-expected accidents such as suddenly power off and the break of carving tool.
4) Keep the same speed (>45meter/min) at curve and straight lines,and its efficiency is upto 3 times the same type of other machines.
5) Be compatible with most CAD/CAM softwares such as Type3,Artcarm,Proe,Wentai,etc.

Confuration

Confuration.



1.Working area:1300*2500*300mm
2.Spindle:4.5KW air cooling spindle in the middle one +3.5KW air cooling spindle +3.5KWair cooling spindle.
3. Table: vacuum table
4.Transmission: X,Y axis rack transmission, Z-axis Taiwan TBI ball screw.
5.Sunfar inverter.
6.Hiwin square linear guide rails
7.Hybrid servo motor and driver
8. 3pcs original air cylinder +  1 pc parallel air cylinder
9.Operating system: Original Nc studio system
10.Z  zero tool sensor
11. Tools box(include router bits, collector,clamp,tool sensor,ect)
12. Artcam software
13.7.5kw China water vacuum pump 380V
14.dual-drum dust collector, brush,suction pipe
15.Voltage 3Phase 380V/50HZ
16.oil injection system
17.Packaging should be international standard plywood case packing
18.with positioning cylinder.
Detailed Images

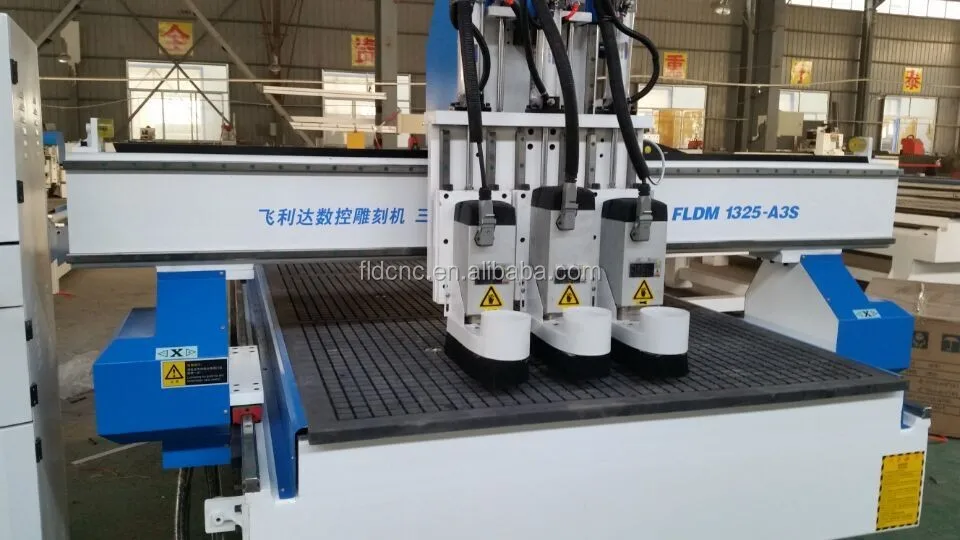

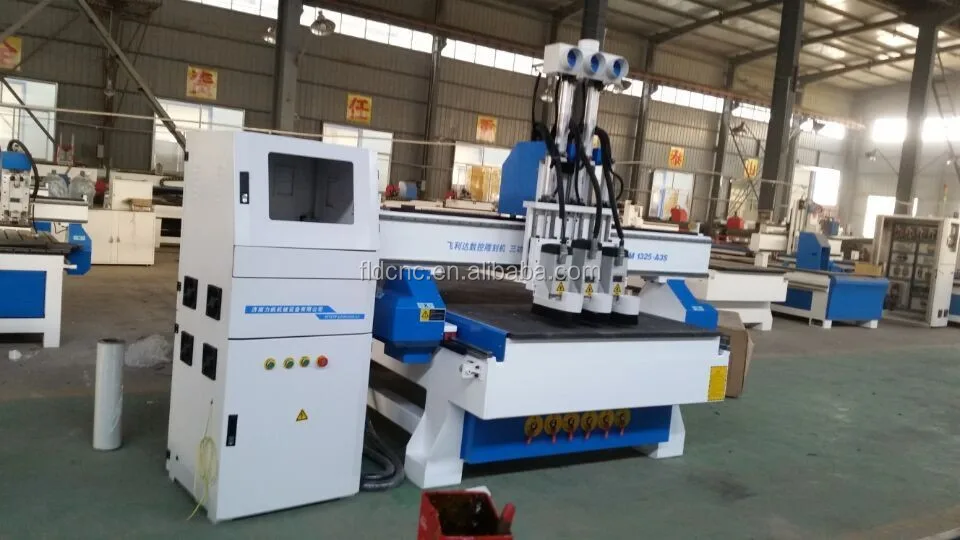

Spindle:4.5KW air cooling spindle in the middle one +3.5KW air cooling spindle +3.5KWair cooling spindle.

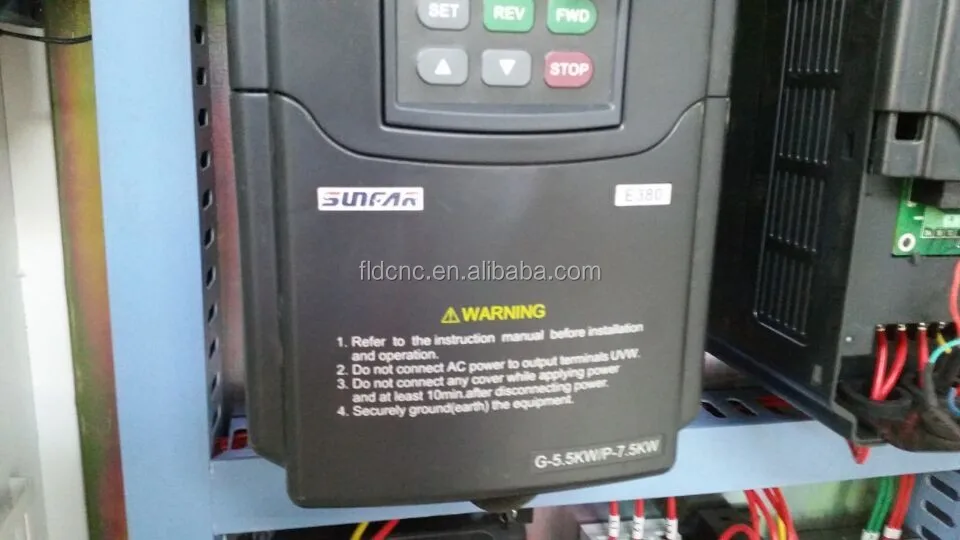

Sunfar inverter.

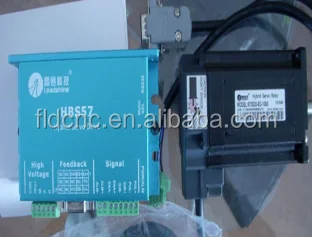

.Hybrid servo motor and driver.


Original Nc studio system.

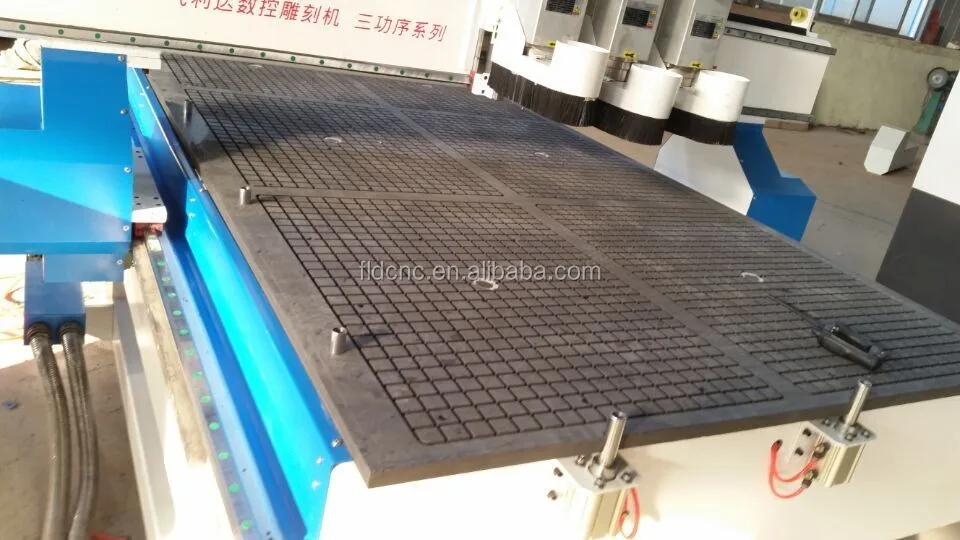

Vacuum table.

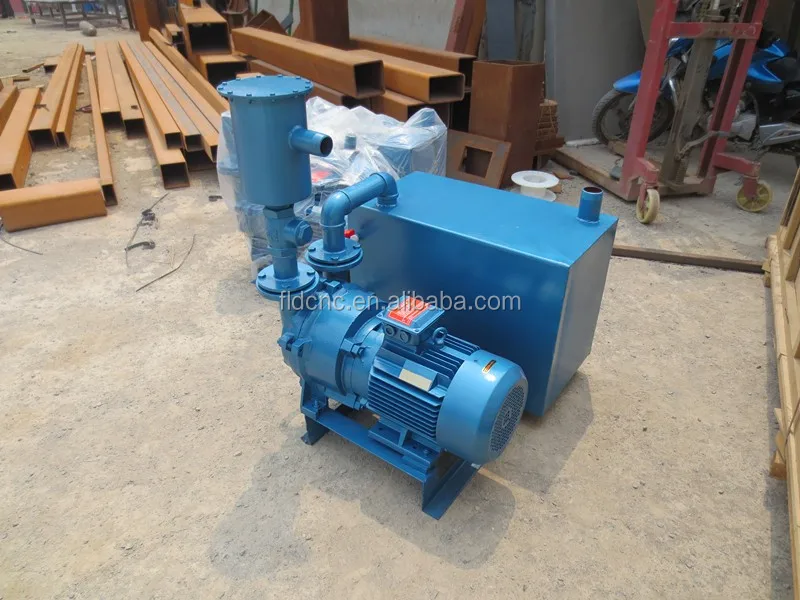

vacuum pump.

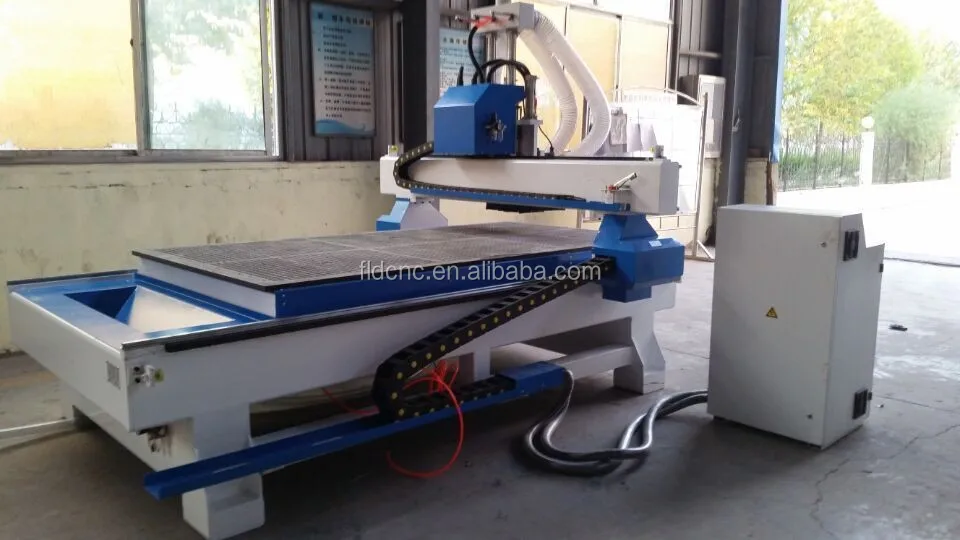

Heavy duty frame.

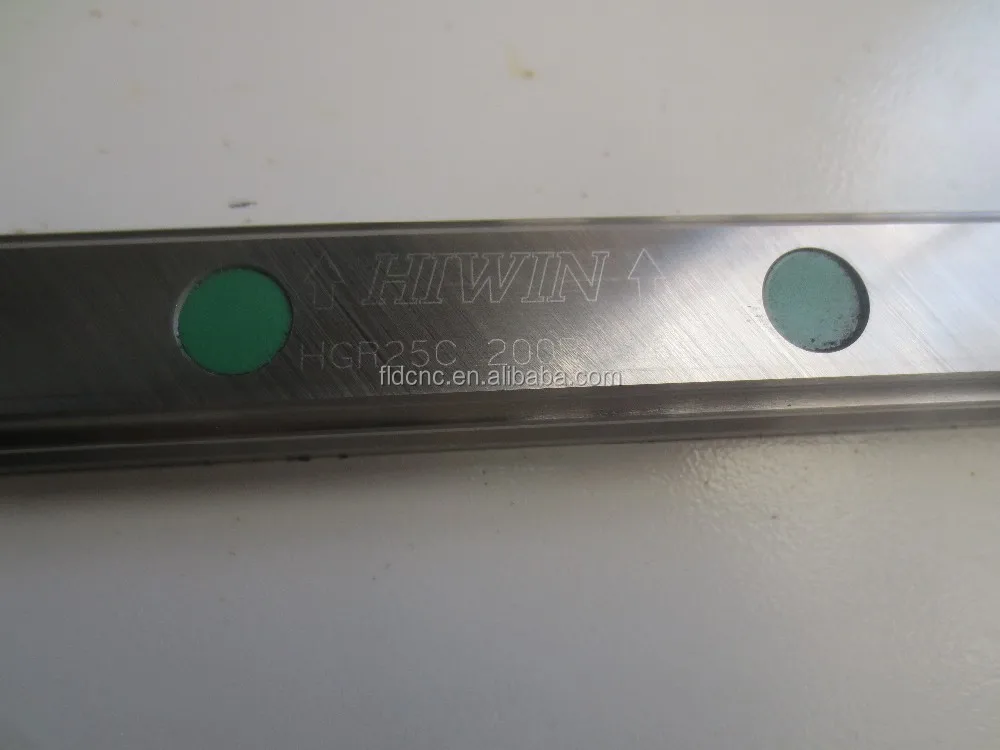

Taiwan Hiwin 20 square rail.

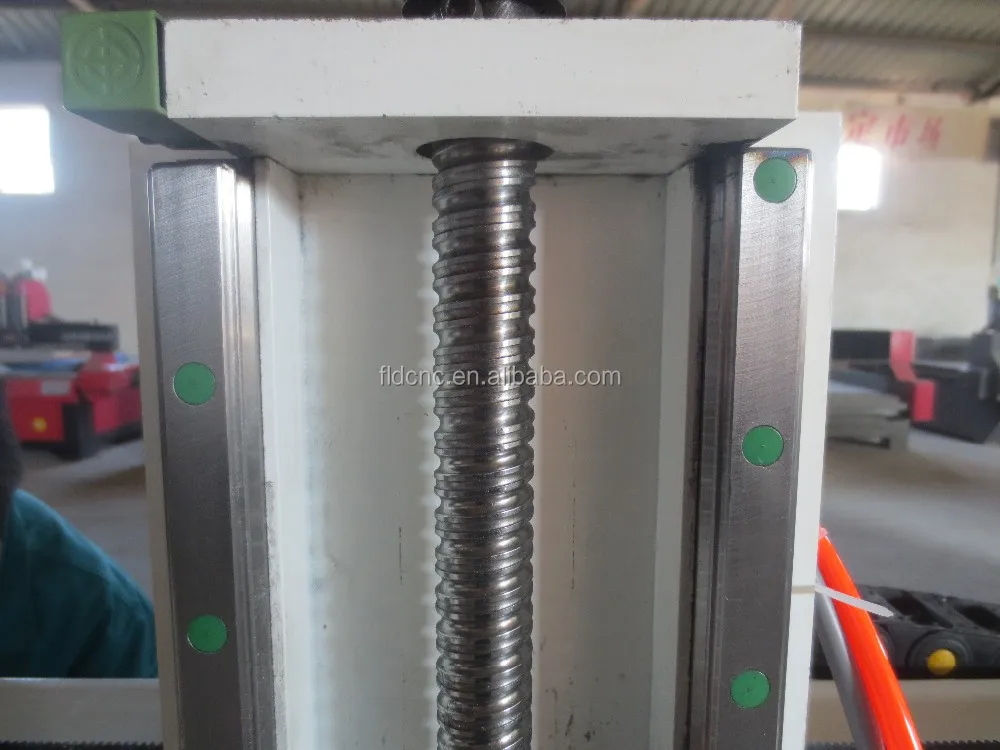

Taiwan TBI Ball screw.


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packge
Packge size
Packge weight
Plywood
3150*2260*2300mm
2600KG
Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

FAQ

Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)


Q2: Do you have the manual of machine.
Yes,we have

Q3.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.

Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.

Q5.How about your guarantee period?
Two years and during the time,if you have any questions ,we will solve it for free.

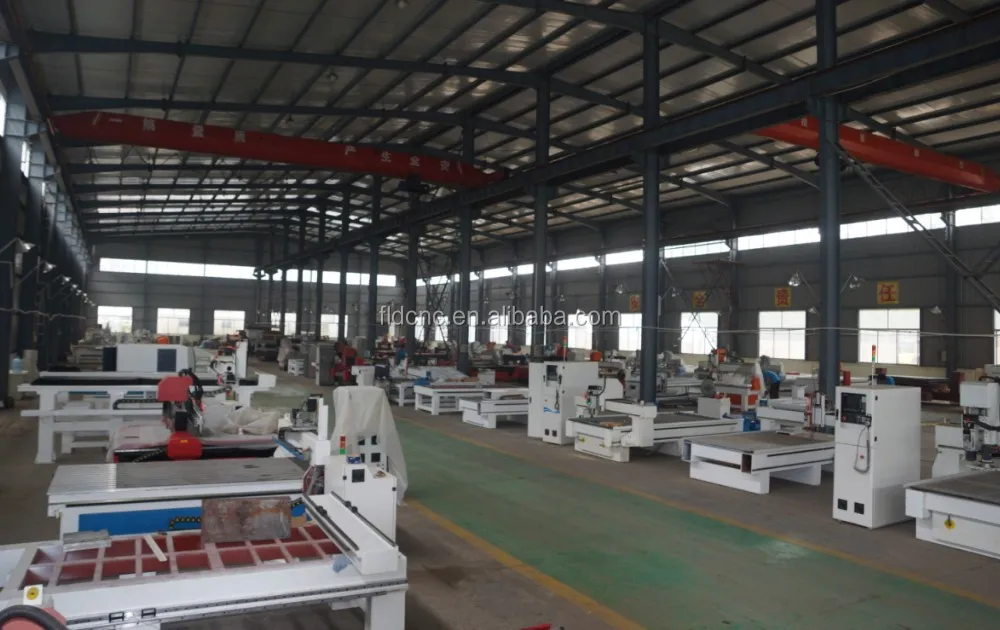

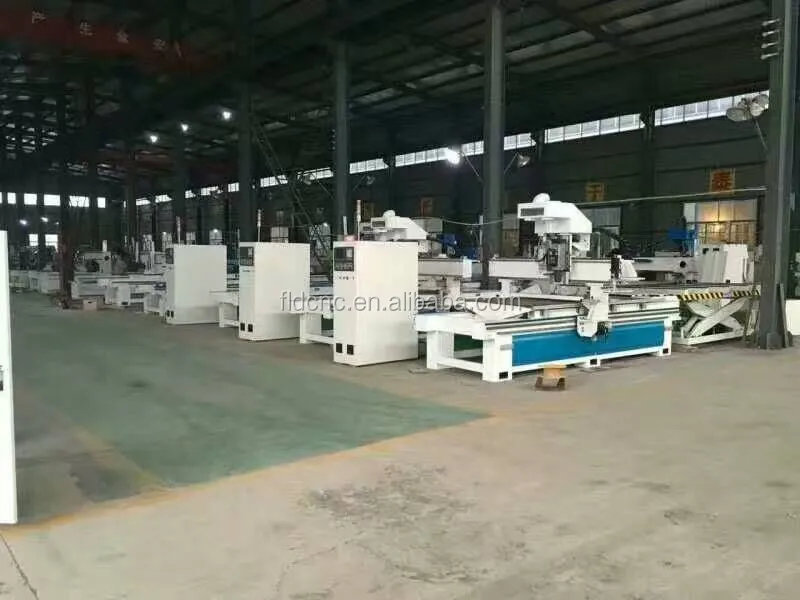

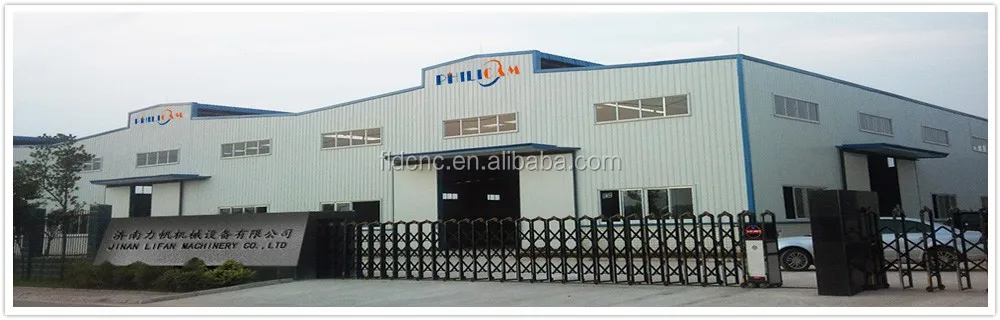

Our company

1. Philicam product is widely used in almost all the materials you can think of.

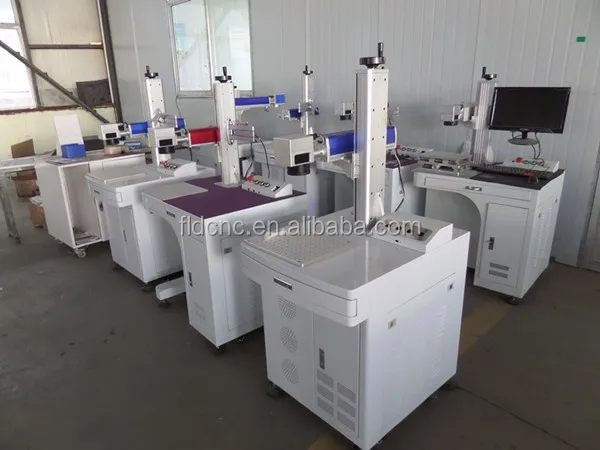

2. Philicam company is specialized in CNC Router and laser machine manufacturing and selling . 3. Philicam machine with high precision and excellent reputation is the most reliable product you can choose.
4. Philicam company has all kinds of machines in store, the delivery time is much shorter than other companies.
5. Philicam company has international technical service office and provides 24 hours online services and technical
supports for customers
