Quick Details

  • Condition: New
  • CNC or Not: CNC
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: PHILICAM
  • Model Number: FLDM1325
  • Voltage: 380v
  • Power(W): 9.0KW
  • Dimension(L*W*H): 3100*2100*2250
  • Weight: 1900kg
  • Certification: CE,SIO
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Cabinet cnc router atc wooden door making machine
  • spindle: China 9KW air cooling spindle
  • control system: Taiwan Syntec 6MB system
  • motor and driver: DELTA servo motor and driver with reducer
  • Vacuum pump: 5.5kw water vacuum pump
  • table: vacuum table
  • transmission: Taiwan TBI ball screw
  • rail: Taiwan HIWIN square rails
  • parts: with reducer, tool box etc
  • inverter: Delta 11KW inverter

Packaging & Delivery

Packaging Details Strong plywood case
Delivery Time Shipped in 20 days after payment

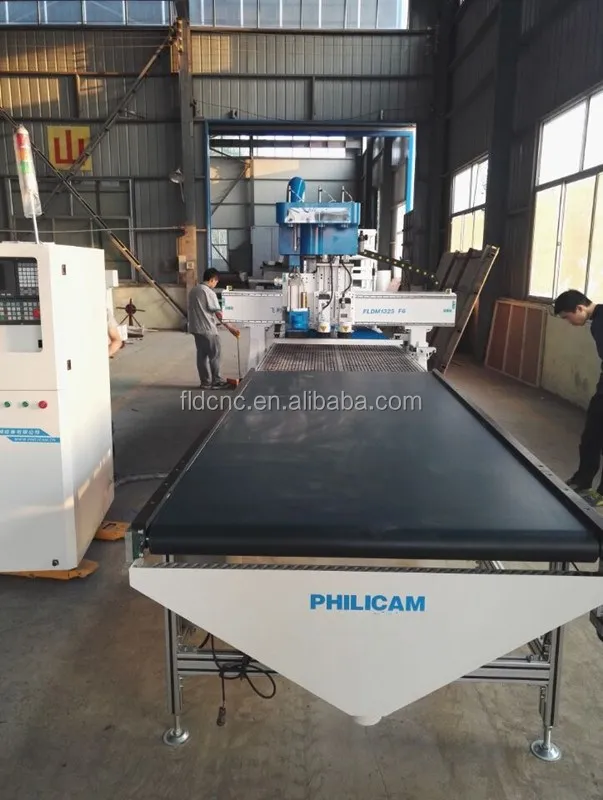

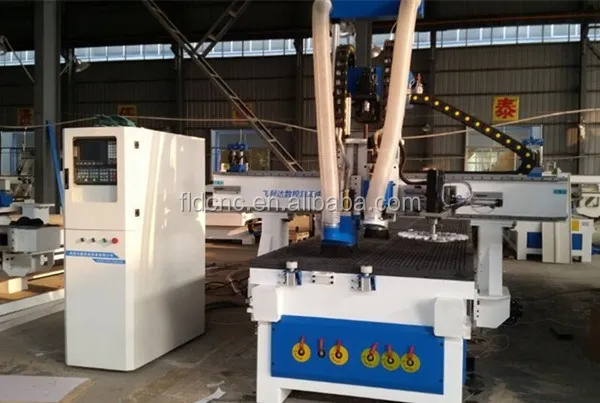

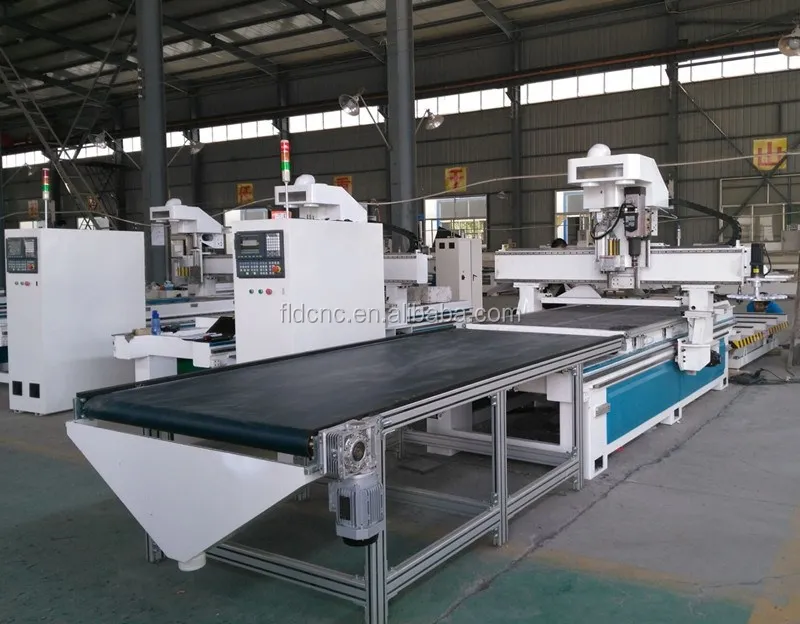

Cabinet cnc router atc wooden door making machine


Features

 1) Working area: 1300x2500x300mm

 2) Spindle motor : China 9KW air cooling ATC spindle

 3) Servo system: YASKAWA850W servo motor and driver, Z axis with reducer

 4) Inverter: Fuling 11kw inverter

 5) Operating system: Taiwan Syntec 6MBsystem

 6) Rail: Taiwan HIWIN square rails

 7) Taiwan TBI ball screw

 8) Vacuum pump: 7.5kw water vacuum pump
 9) Table: Vacuum Table and T-slot table
10) helical rack
11) software:UK CVsoftware
12) tools box (include router bits,collect, clamp, tool sensor,etc)

13) dual-drum dust collector ,Brush, suction pipe, Vacuuming stents.
14) Change of tools - circular the 12tools
15) Cable: drag chain specific Cable, anti-jamming, anti-static; with high flexibility, long-term use will not break
16) Overall welding tempered aging treatment, strong and does not distort

17) Beam: steel beam stiffeners
18) Voltage 3PHASE 380V/ 50HZ

19)Autolubrication system
20)with drilling system


Description

Parameter

X,Y Working Area

1300*2500mm

Z Working Area

300mm

Table Size

1440*3040mm

Resolution

0.01mm

Lathe Structure

Seamless welded steel structure, better than cast iron one

X,Y Structure

Rack and pinion, gear drive,

Taiwan Hiwin H30 square guide rails

Z Structure

Germany-made rolling ball screw,

Taiwan Hiwin H30 square guide rails

Max. Idling Speed

60m/min

Spindle

Italy HSD air-cooling 9.0 KW

Spindle Speed

0-24000r/min, variable speed

Working Voltage

AC380V/50Hz

Motor and driver

YASKAWA

Working Mode

Servo

Command

G code (HPGL,U00,mmg,plt)

Operating System

SYNTEC control system

Diameter of Cutter

φ3.175-φ12.7

Cooling Mode

Air-cooling

Dust-collect Function

Yes

Work Holding

By suction or clamp

Tool Magazine

Linear-style auto-tool changer system with 6 pieces of tools

Net Weight

2100KG





Applications of atc wood cnc machine

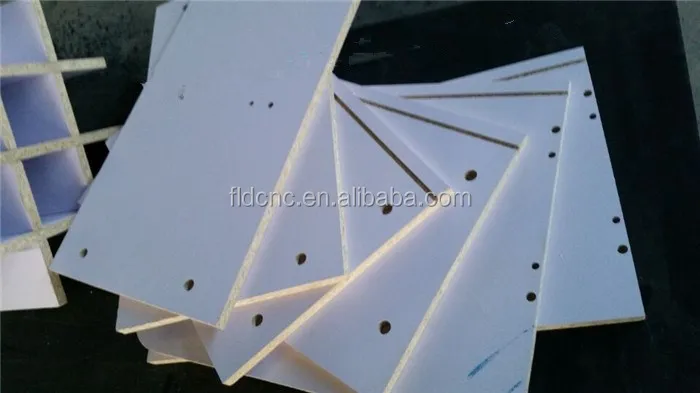

 1). Furniture: plate, office furniture, doors, cabinets.

 2). Wood products: speakers, games cabinets, comfurniture center furniture center puter tables, sewing machines, musical instruments.

 3). Board processing: insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.

 4). Decoration: Acrylic, PVC, MDF, plastic and soft metals such as copper and aluminum.




Other products



Our warranty:

1) warranty: 24months (laser tube 6 months)

2) provide technical services to the door(We have professional engineers to offer machine installation commissioning and maintenance

3) replace all parts for free during the warranty period(no human damage)

4) 18 Hour technology online support (skype, whatsapp, facebook)

5) We have all the process learning video of the laser cutting machine

 and we also offer you on-site training or through remote control training by computer.




Welcome to join us, We are also looking for the agents!



Contact person: Ruth Kong



Skype: lifancnc04



WhatsApp:+8615053174807
